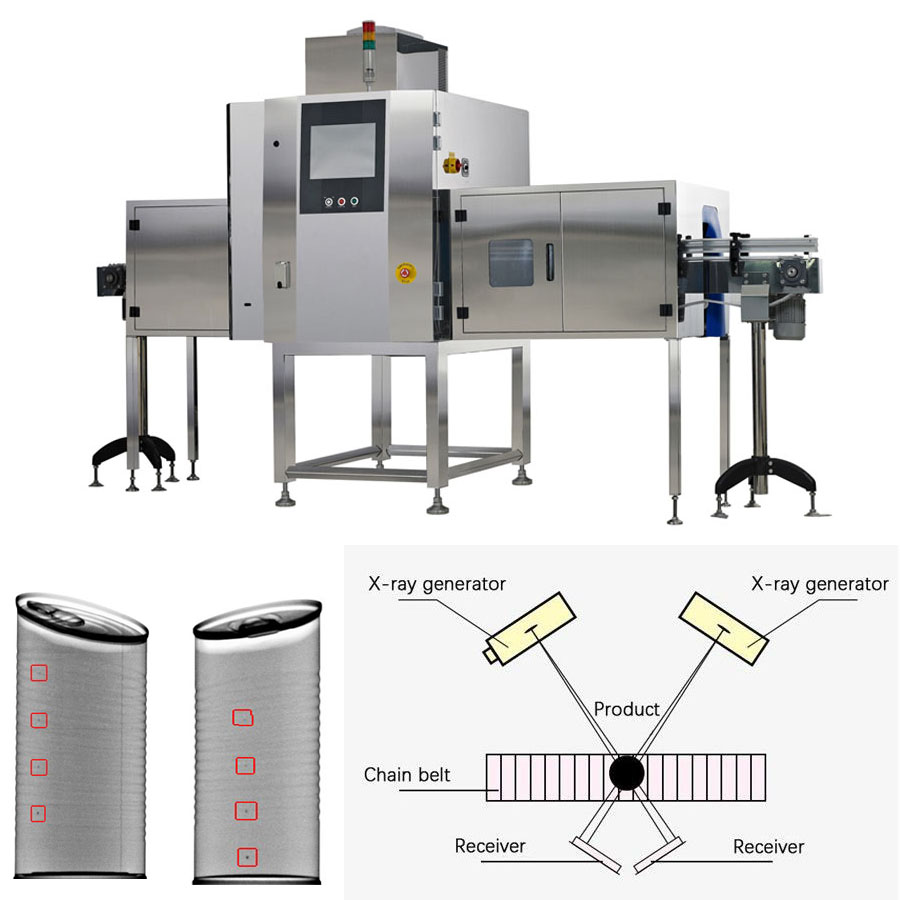

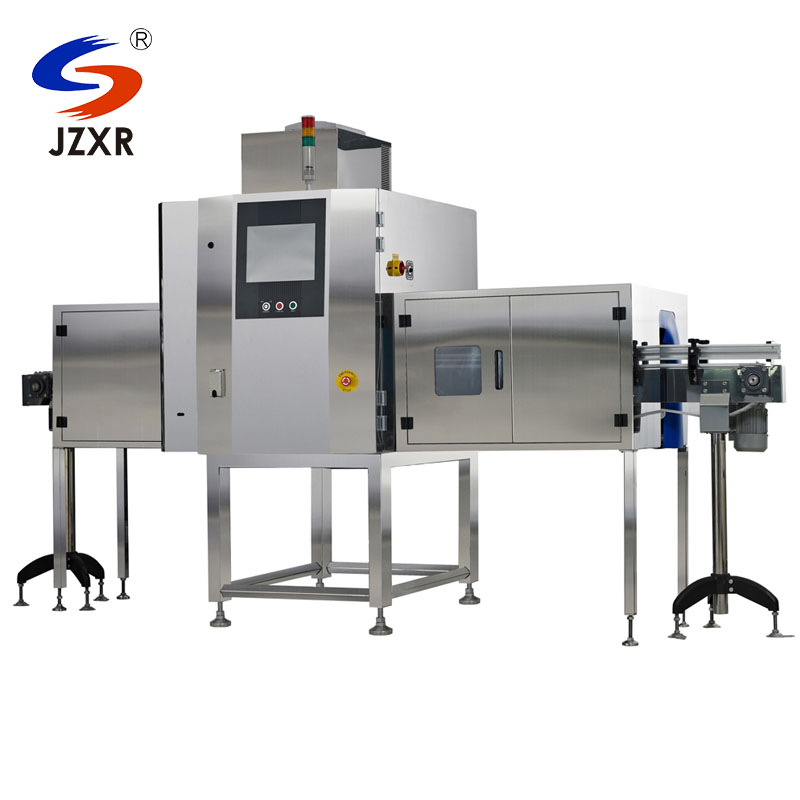

Dual-Beam X-ray Inspection System for Cans Jars Bottles

Model NO.: XR-5000D X-ray Inspection System
Alarm Form: Pusher Rejector
X-ray Direction: From The Side
Detection Tunnel Size: 180mm(W)*250mm(H)
Conveyor Speed: 10-70 Meter/Min
Max. Bearing Capacity: 5 Kg
Best Detection Accuracy: SUS Ball: Φ0.5mm, SUS Wire: Φ0.3 *2mm
Best Glass and Ceramic Ball Accuracy: Φ2.0mm
Screen: 17 Inch Full Color Touchable Screen
Surface Treatment: Mirror Polished / Sand Blasting
Portective Mode: Lead-Free Food Grade Soft Curtain
Conveyor: Chain Belt/Food Grade PU Belt
Conveyor Height From Ground: 750 ± 30mm
Specification: 150kv, 7.5mA
