    X-Ray Inspection System for Sauce and Liquid

    Model NO: XR-100D-50 X-ray Inspection System
    Certification: CE, ISO, OHSAS
    Alarm Form: Buzzer and Red Light Alarms
    X-ray Generator: 80kv, 150W
    Pipe Diameter: Standard 50mm or Customized
    Detection Accuracy: SUS Ball: Φ0.4mm, SUS Wire: Φ0.2 *2mm
    Ceramic/Glass Ball Accuracy: Φ1.5mm
    HMI: 15 Inch Touchable Screen
    X-ray Leakage: < 1μsv/H
    Air Pressure: 0.8 MPa
    Automatic Rejector: Valve
    Material of Construction: SUS 304
    Surface Treatment: Mirror Polish / Sand Blasting
    IP Rate: IP66
    Specification: Sealed pipe system

    GET A QUOTE


    Product Description

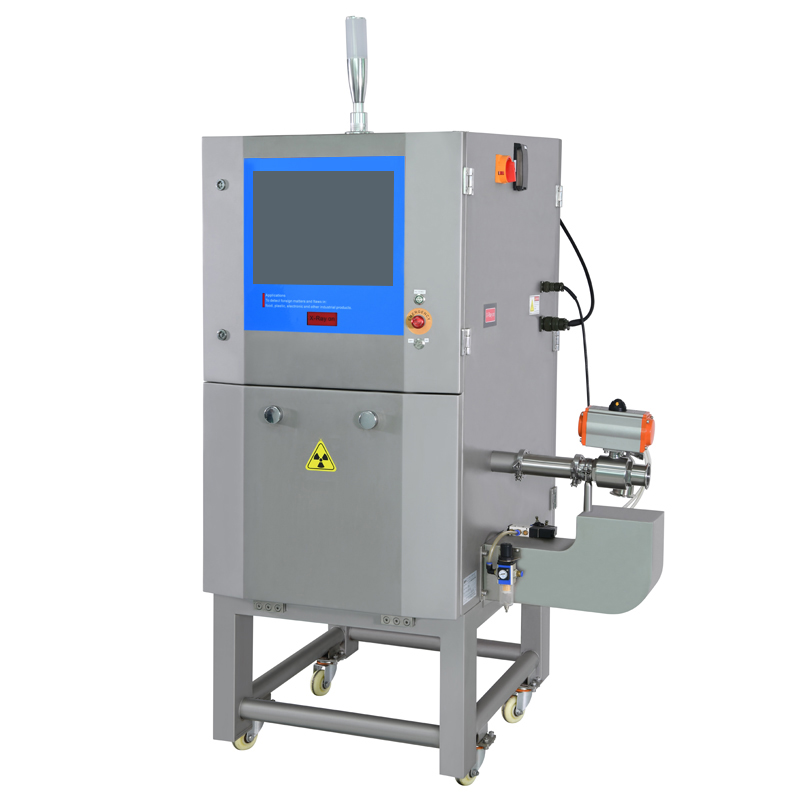

    Sealed Pipe X-ray Inspection System for Liquid and Sauce Product
    X-Ray Inspection System for Sauce and Liquid

    Specifications


    MODEL# & Product name XR-100D-50 X-Ray Inspection System for Sauce and Liquid
    X-ray source 150W 80KV
    Tunner size(W*H) 240*120mm Pipe Dia: 50mm
    Max sensitivity SUSI ballΦ0.4mm, SUS wireΦ0.2*2mm, CeramicsΦ1.0mm, GlassΦ1.0mm
    Conveying speed 10-50m/min
    Screen LAN port,USB port
    Working environment Temperature:-10-40ºC(Cooling:industrial air condition),Humidity:30%-90%,
    No frost(humidity control:dehumidifier)
    X-ray leakage <1µSv/hour
    Protective mode Protective soft curtain(removable)
    Alarm Standard: Sound and light alarm   Optional: Stop / Rejection system
    Power supply AC220V ±10% 50/60Hz,1.5kVA Max
    Material SUS304
    Conveyor load Standard: Max 5kg  Customized: > 5kg
